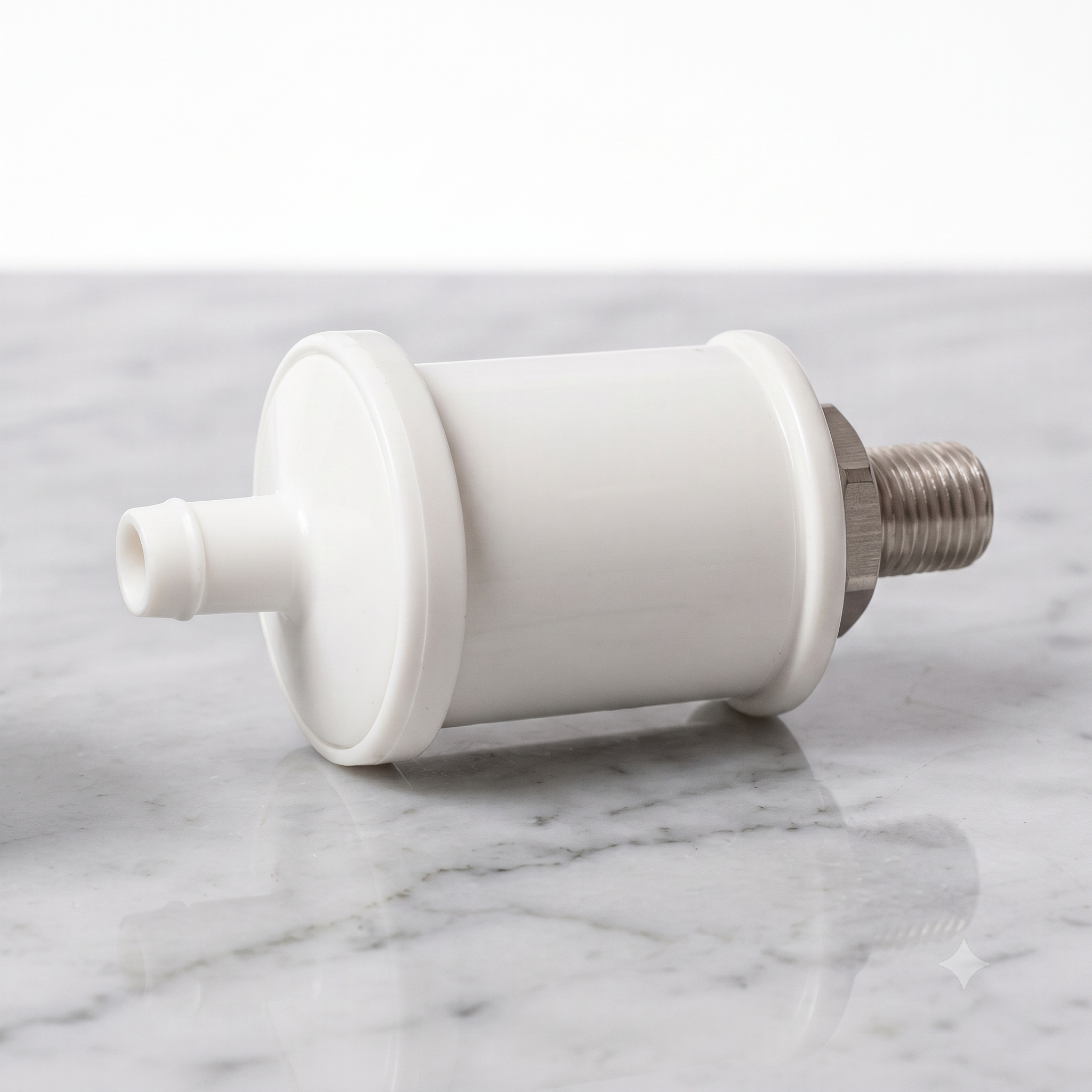

PTFE Capsule Filter
Dual-layer hydrophobic PTFE capsule filter with 0.45 µm prefilter and 0.22 µm final membrane for gas, venting, solvent, and chemically aggressive filtration applications.
Product Code: XyCap-C-PTFE
Product Description
XyCap PTFE capsule filters are designed for gas, venting, solvent, and chemically aggressive filtration applications. The dual-layer hydrophobic PTFE membrane combines a 0.45 µm prefilter with a 0.22 µm final membrane to support high-throughput, strong chemical resistance, and stable gas line or solvent filtration.
Ordering Information:
| Catalog Number | Description | Membrane | Size | Connection | Sterilization |
|---|---|---|---|---|---|
| XyCap-C-PTFE-5HB | 5 inch PTFE capsule filter, gamma sterilized, dual-layer 0.45 µm prefilter and 0.22 µm final membrane, hose barb connection | Dual-layer PTFE | 5 inch | Hose Barb | Gamma Sterilized |
| XyCap-C-PTFE-5LL | 5 inch PTFE capsule filter, gamma sterilized, dual-layer 0.45 µm prefilter and 0.22 µm final membrane, luer lock connection | Dual-layer PTFE | 5 inch | Luer Lock | Gamma Sterilized |
| XyCap-C-PTFE-5TC | 5 inch PTFE capsule filter, gamma sterilized, dual-layer 0.45 µm prefilter and 0.22 µm final membrane, tri-clamp connection | Dual-layer PTFE | 5 inch | Tri-Clamp | Gamma Sterilized |
| XyCap-C-PTFE-10HB | 10 inch PTFE capsule filter, gamma sterilized, dual-layer 0.45 µm prefilter and 0.22 µm final membrane, hose barb connection | Dual-layer PTFE | 10 inch | Hose Barb | Gamma Sterilized |
| XyCap-C-PTFE-10LL | 10 inch PTFE capsule filter, gamma sterilized, dual-layer 0.45 µm prefilter and 0.22 µm final membrane, luer lock connection | Dual-layer PTFE | 10 inch | Luer Lock | Gamma Sterilized |
| XyCap-C-PTFE-10TC | 10 inch PTFE capsule filter, gamma sterilized, dual-layer 0.45 µm prefilter and 0.22 µm final membrane, tri-clamp connection | Dual-layer PTFE | 10 inch | Tri-Clamp | Gamma Sterilized |
Technical Highlights
Dual-layer PTFE membrane: Combines a 0.45 µm prefilter with a 0.22 µm final membrane to improve loading capacity and support consistent filtration performance.
Hydrophobic PTFE membrane: Suitable for air, gas, venting, and compatible solvent filtration applications.
Strong chemical resistance: Designed for use with aggressive solvents, acids, and chemically demanding filtration workflows.
Venting and gas filtration support: Useful for sterile venting, tank venting, and gas line filtration applications.
Gamma sterilized: Supplied gamma sterilized for controlled and aseptic use environments.
Multiple connection options: Available with Hose Barb, Luer Lock, and Tri-Clamp connections.
5 inch and 10 inch formats: Supports both smaller lab-scale use and higher-volume process filtration needs.
